Explore expert tips to tackle elephant's foot 3D printing issues in our comprehensive guide. Learn about the causes, preventive measures, calibration techniques, slicer settings, and troubleshooting methods for eliminating the common 3D print elephant foot defect and improving print accuracy.
<H2>What Is Elephant Foot in 3D Printing?
Elephant foot is a common FDM 3D printing defect where the bottom layers of a model expand outward, creating a wider base than intended. This usually happens when the first few layers remain soft due to excessive heat or become compressed because the nozzle is too close to the build plate.
The most common causes include:
- High bed temperature
- Incorrect Z-offset
- Excessive first-layer squish
- Poor cooling
- Over-extrusion
Fortunately, elephant footing 3D printing issues can often be fixed through proper printer calibration, optimized slicer settings, and better environmental control.
<H2>Troubleshooting the 3D Printing Elephant Foot Phenomenon
Understanding the Elephant Foot in 3D Printing
3D printing elephant foot is a widespread issue encountered by many users. This phenomenon, characterized by an outward flaring or bulging at the base of a printed part, can significantly impact the quality and functionality of 3D prints.
While many users view elephant foot as a cosmetic issue, it can create serious problems for engineering and functional components. Even a small amount of outward expansion can affect assembly tolerances, cause mating parts to fit incorrectly, and reduce the overall accuracy of a finished product.
By understanding the causes and solutions for elephant's foot 3D printing, users can achieve cleaner, more professional-looking prints with improved dimensional precision.
<H2>Why Elephant Foot Matters
The impact of elephant foot extends beyond appearance. Parts with dimensional inaccuracies often require additional post-processing or complete reprinting. Research published in ScienceDirect found that actual energy consumption in FDM printing can be approximately 50% 50% higher than ideal process estimates when failed prints and human error are taken into account. The study also found that material losses from failed builds were approximately 2.22 times higher than estimates derived from controlled printing environments.
For decorative models, it may only affect appearance. However, for functional parts, it can lead to:
- Reduced dimensional accuracy
- Poor fit between assembled components
- Increased post-processing requirements
- Inconsistent part tolerances
- Difficulty creating snap-fit or mechanical assemblies
This is why learning how to stop elephant foot 3D printing is particularly important for prototyping, manufacturing, and engineering applications.
<H2>Identifying the Causes of Elephant Foot in 3D Prints
Image source: https://www.3dprinteros.com/printer-management-software or https://app.arcade.software/share/Rt3Uj5OYdYW46ljPJ0vH?ref=share-link
<H2>Elevated Print Bed Temperatures
One primary cause of elephant foot 3D print issues is the high temperature of the print bed. Necessary for initial layer adhesion, this heat can keep the bottom layers in a semi-melted state, leading them to spread under the weight of upper layers.
This is especially common when printing materials such as PETG and ABS, which typically require higher bed temperatures than PLA.
<H2>Inadequate Cooling and Bed Leveling Inaccuracies
Poor cooling from the printer’s fan and inaccurate bed leveling can exacerbate the elephant foot issue. If the nozzle is too close to the bed, it can cause excessive squishing of the material, contributing to the problem.
An incorrect Z-offset is one of the most common causes of elephant foot. When the nozzle sits too close to the build surface, the first layer becomes excessively compressed, forcing material outward instead of allowing it to retain its intended shape.
Signs of incorrect Z-offset include:
- Flattened first layers
- Excessive material squish
- Visible ridges around the base
- Difficult first-layer removal
<H2>Design and Environmental Factors
Other contributing factors include the design of the object, environmental conditions, and high infill densities, which can create internal stress and uneven cooling rates.
Environmental factors such as enclosure temperature, room airflow, and ambient temperature can also influence cooling behavior. Prints that cool too slowly may be more susceptible to elephant footing 3D printing defects.
<H2>Material-Specific Behavior and Elephant Foot
Different materials respond differently to heat and cooling.
Material
Elephant Foot Risk
PLA
Low to Moderate
PETG
Moderate to High
ABS
Moderate
ASA
Moderate
TPU
Low
PETG often requires extra attention because it remains soft longer than PLA and benefits from carefully optimized bed temperatures.
<H2>Addressing Elephant Foot in 3D Printing
Calibration Techniques
Proper calibration is crucial for preventing elephant foot. This includes careful bed leveling and Z-axis adjustment, particularly for printers like the Creality Ender 3.
For best results:
- Verify bed leveling before each major print session
- Calibrate Z-offset regularly
- Confirm first-layer thickness matches slicer settings
- Check extrusion flow rates
- Perform periodic first-layer test prints
These calibration steps can dramatically reduce the likelihood of 3D print elephant foot defects.
<H2>Step-by-Step: How to Stop Elephant Foot 3D Printing
If you're looking for a practical solution, follow these steps:
Step 1: Reduce Bed Temperature
Lower the build plate temperature by 5°C increments while maintaining sufficient adhesion.
Step 2: Adjust Z-Offset
Raise the nozzle slightly to reduce first-layer compression.
Step 3: Optimize First Layer Height
Avoid excessively thin first layers that increase squish.
Step 4: Reduce First Layer Flow
Decrease initial layer extrusion slightly if over-extrusion is suspected.
Step 5: Improve Cooling
Increase cooling after the first few layers have adhered successfully.
Step 6: Enable Elephant Foot Compensation
Many slicers, including Cura and PrusaSlicer, include Elephant Foot Compensation settings that automatically offset lower layers.
<H2>Design Adjustments
Implementing chamfers in your 3D model is an effective design strategy. Chamfers help in offsetting the spread of material at the base.
A chamfer of approximately 0.3–0.5 mm is often sufficient to hide minor elephant foot defects without affecting part functionality.

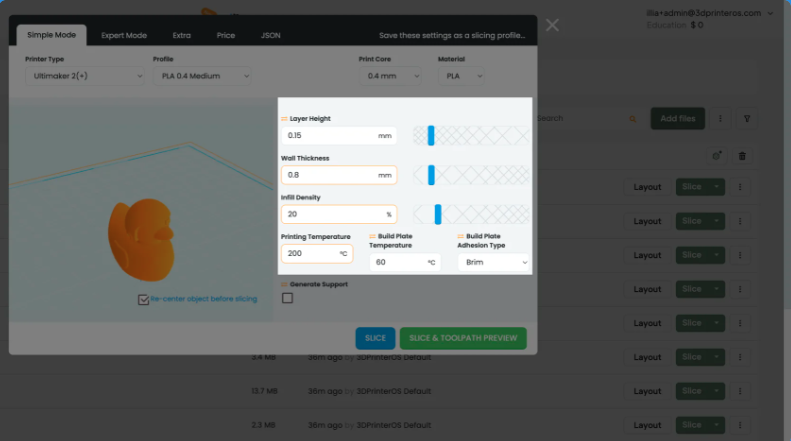

Image Source: https://www.3dprinteros.com/3d-printer-slicer-software or https://app.arcade.software/share/1z79RiXGHL2Yh6x0nWin?ref=share-link
<H2>Slicer Settings
Adjusting slicer settings can significantly reduce the occurrence of elephant foot. This involves tweaking the bed temperature, first layer settings (including height, speed, and extrusion rate), and fan speed.
Recommended Slicer Adjustments
Setting
Recommended Action
Bed Temperature
Reduce gradually
First Layer Flow
Reduce slightly
Initial Layer Height
Optimize carefully
Initial Fan Speed
Increase after first layers
Elephant Foot Compensation
Enable
Initial Layer Speed
Slow and controlled
Testing one setting at a time helps identify the root cause more effectively.
Utilizing Rafts
Using a raft as a base layer for your print can transfer the effects of elephant foot to the raft instead of the actual object.
Rafts are particularly useful when printing functional parts that require precise bottom-edge dimensions.
Managing the Environment
Control of the ambient temperature and airflow around the printer can influence the cooling rate of the extruded filament, thus impacting the occurrence of elephant foot.
<H2>Elephant Foot Troubleshooting Checklist
Before starting your next print, verify:
✅ Bed temperature is appropriate
✅ Z-offset is calibrated
✅ Bed leveling is accurate
✅ First-layer flow is correct
✅ Cooling fans operate properly
✅ Elephant Foot Compensation is enabled
✅ Material profile is optimized
✅ Environmental conditions are stable
<H2>Post-Processing Techniques for Elephant Foot
Sanding and Filing
Sanding and filing are common post-processing methods to manually reduce the prominence of elephant foot on printed objects. These techniques work particularly well for PLA and PETG parts where only minor correction is required.
Chemical Smoothing and Heat Treatment
Advanced techniques like chemical smoothing and heat treatment can also be employed to reshape and smooth out the affected areas. For ABS parts, vapor smoothing can help reduce visible surface imperfections while improving overall appearance.
<H2>Preventing Elephant Foot During the Design Stage
Many designers proactively account for elephant foot during CAD modeling.
Common techniques include:
- Adding bottom-edge chamfers
- Designing extra clearance into mating parts
- Increasing tolerance near contact surfaces
- Using rafts for critical components
These strategies can minimize the impact of minor calibration inconsistencies.
3DPrinterOS allows administrators to manage printers, users, and slicing workflows through a centralized cloud environment. This helps ensure that approved settings are applied consistently, reducing variability and improving print quality across educational labs, enterprises, military engineering teams, and consumer goods manufacturing environments.
<H3>Conclusion
Elephant's foot 3D printing issues are among the most common first-layer defects encountered in FDM manufacturing. Although the defect is often caused by excessive bed temperature, incorrect Z-offset, over-extrusion, or inadequate cooling, it can usually be corrected through careful calibration and slicer optimization.
While elephant foot is one of the most common first-layer defects in FDM printing, it is also one of the most preventable. Consistent calibration, optimized slicer settings, controlled temperatures, and proper printer maintenance all contribute to improved dimensional accuracy and print quality.
